机载B码发生器ES-291

[复制链接]

4

主题

7

帖子

4

积分

试用期机务

Rank: 1

积分
4
发表于 2022-11-4 15:16:21 | 显示全部楼层 |阅读模式 来自: 中国北京
  • 价格
    5.8万元
  • 品牌
    美国 ESE
  • 联系邮箱
  • 地址
  • 类别
    特种设备
  • 固定电话
    81746912
海先生: 13439727133

① 预付定金均存在欺骗行为!
② 价格低廉、在更多信息里填写电话的要谨慎!
③ 若遇上疑似或确定为欺诈交易、网络诈骗等信息,请向本网站举报!

详细信息

简介:

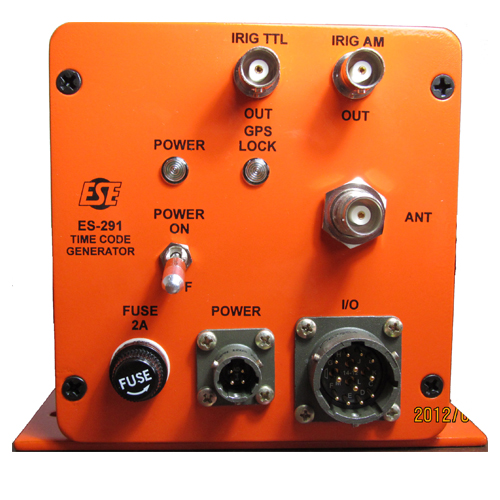

ES-291是为机载应用而设计的一种高精度GPS时码发生器,输出的IRIG-B码可以同步视频、音频和数据记录器。它接收到GPS的时间和日期信息后,输出IRIG-B和ASCII (RS-232C)格式的时码,输出两路1PPS信号和GPS“锁定”输出。它可以同时跟踪12颗卫星,但是只要收到一颗卫星信号就可以输出时码信号。
特点:
·        IRIG-B和 ASCII (RS-232C) 输出
·        两路1 PPS 输出 (20% and 50% Duty)
·        GPS锁定指示及输出
·        时区修正
·        自动夏令时修正
·        室内/室外天线(16' 电缆)
·        加固的铝合金外壳(自带安装孔位)
主要性能指标:
·        GPS接收机通道数:12
·        IRIG-B输出占空比:3.3到1(AM:0.5-5VPP,可选DC)
·        IRIG-B输出时码精度:70us (与UTC相比)
·        1PPS精度:优于10ns
·        RS-232输出:输出ASCII格式的日期和时间码。
·        供电及功耗:11-40V直流供电,100mA
·        工作温度范围:-40℃到+60℃
·        外形尺寸: 8.76厘米×10.16厘米×15.24厘米(宽×高×深)
·        重量:450克
The ES-291 is a very accurate GPS Time Code Generator. The unit receives time and date information from Global Positioning System satellites and outputs IRIG-B and ASCII (RS-232C) Time Codes. Two (2) One Pulse Per Second outputs and a GPS "Lock" output are also standard features. A twelve-channel receiver is employed that is capable of tracking up to twelve (12) satellites simultaneously, although reception of only one is required for time data to be output. Several options are available.

  • IRIG-B & ASCII (RS-232C) outputs
  • Dual 1 PPS Output (20% and 50% Duty)
  • GPS "Lock" Indicator & Output
  • Time Zone Offset
  • Automatic Daylight Savings Time Correction
  • Indoor/Outdoor Antenna with 16' Cable
  • Rugged Powdercoated Aluminum Enclosure (Mounting Plate included)
  • 11-40 VDC Power Input
  • 订货选项:
  • 810F
    Ruggedized enclosure to meet MIL-STD-810F standards.
    AC
    AC Adapter: An AC Adapter with mating connector is provided. Intended for bench testing.
    Ant
    GPS Antenna: High Performance GPS Antenna for harsh RF Environments.
    B
    Parallel BCD Output: CMOS compatible, 5-volt logic in parallel four-line format is accessible through a rear-mounted D-sub connector.
    Display
    .4" LED Display: Six digit 0.4" red LED display for Airborne units.
    F
    Fuse: A panel mounted fuse is supplied. An internally mounted fuse is standard.
    HQ-Out
    "Have Quick" Time Code Output: A "Have Quick" Output is provided. This Option meets the ICD-GPS-060 standard.
    Jam
    IRIG-B Jam Sync Input
    Moto
    Motorola Output: This Output is from the GPS receiver. It contains latitude, longitude and altitude information as well as time code information.
    NMEA1
    The NMEA GPZDA (Time & Date) output is provided. The NMEA GPZDA output replaces the standard RS-232C Format A output.
    OR
    Orange Powder Coat Enclosure
    SMPTE/EBU
    SMPTE or EBU Time Code outputs: SMPTE or EBU Time Code outputs may be specified (not available with IRIG).
    TTL
    IRIG-B TTL Output: via panel mounted BNC connector
