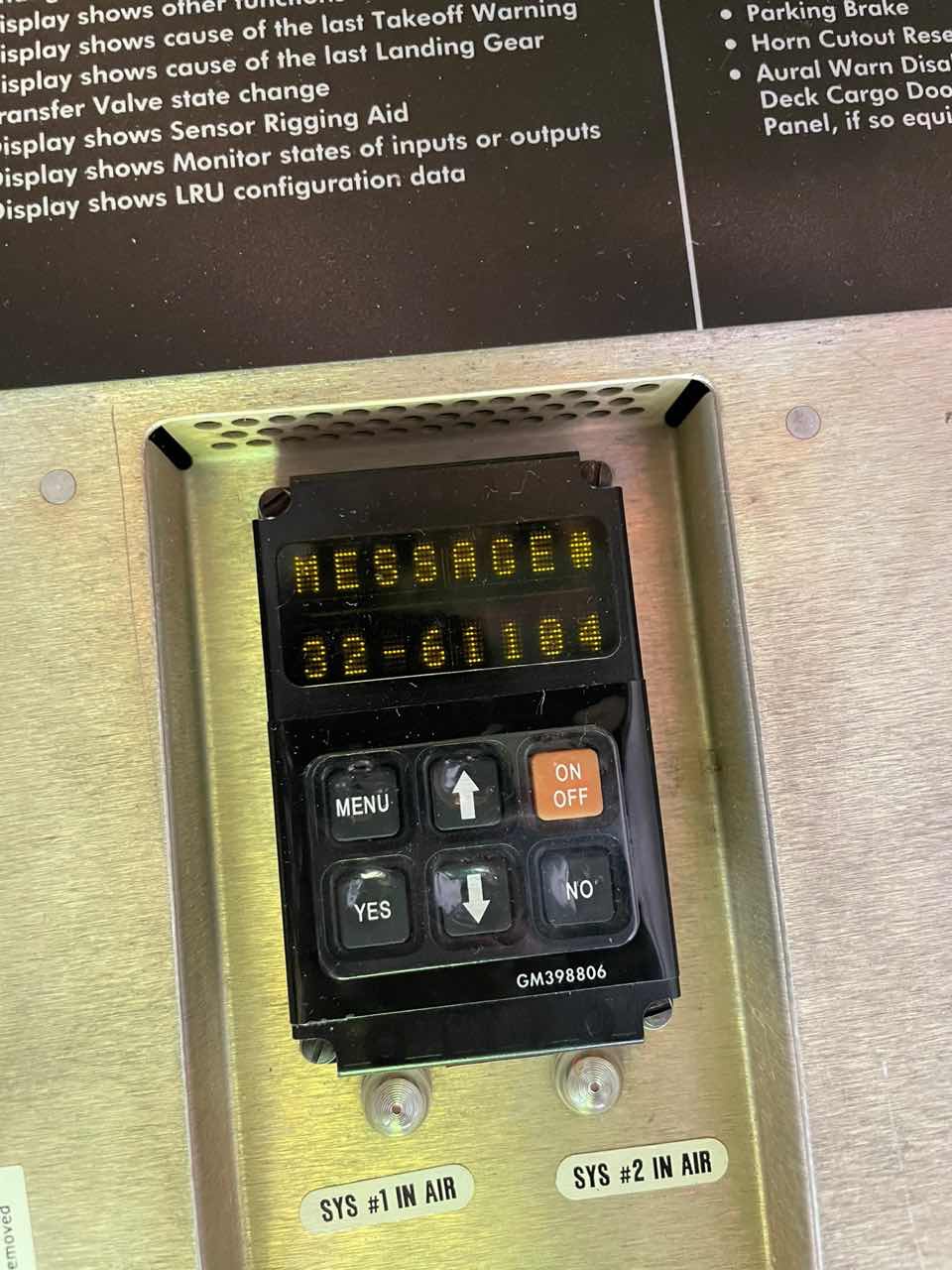

737NG关于PSEU灯亮32-61104 32-64004故障分析

机务大神

♣FIM32-61TASK803

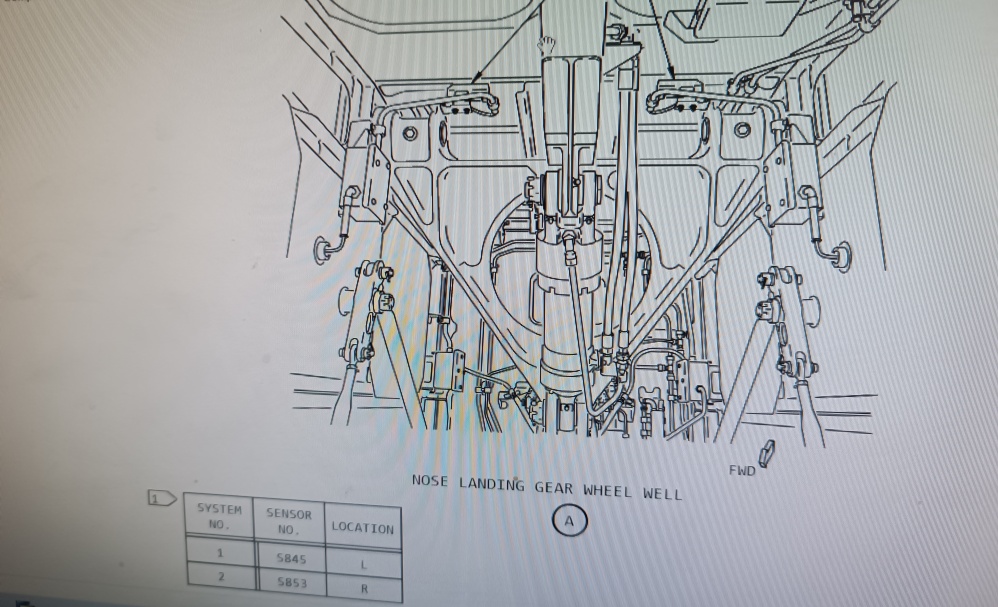

Nose Landing Gear Down Sensor Fault - Fault Isolation

32-64004 NO DISP FAULT NOTE: This message text for 32-64004 will show as DO NOT DISPATCH.


更换前起落架放下位置传感器
TASK 32-61-51-020-801
Nose Landing Gear Down Position Sensor Removal
TASK 32-61-51-400-802
Nose Landing Gear Down Position Sensor Installation


PN   80-207-01

Measure the sensor [6] clearance, do this task: Nose Landing Gear Down Position Sensor Clearance Measurement, TASK 32-61-51-220-801.


task: Nose Landing Gear Down Position Sensor Operational Test, TASK 32-61-51-710-801.


♣注意


This string will be used to pull wire of the new sensor through the conduit. You can tie the string to the landing gear structure to make sure the string is not pulled through the conduit.
此字细绳将用于通过导管拉动新传感器的导线。你可以把绳子系在起落架的结构上，以确保绳子没有穿过导管。


Make sure you do not pull the string through the conduit.
确保你不要把绳子穿过管道。



♣工具
套筒，塞尺，LCR表，欧姆表
